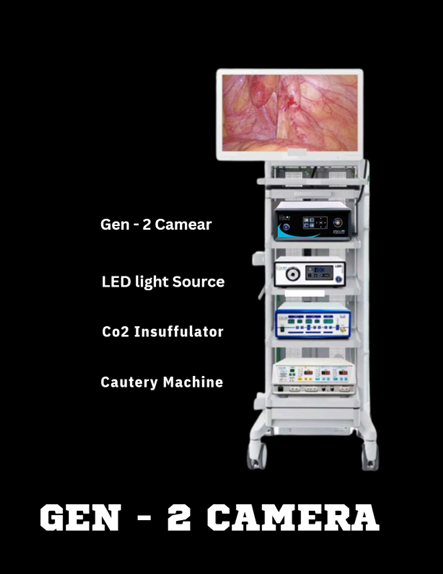

GEN-2 Laparoscopic Camera – 1 Chip Full HD Endoscopy

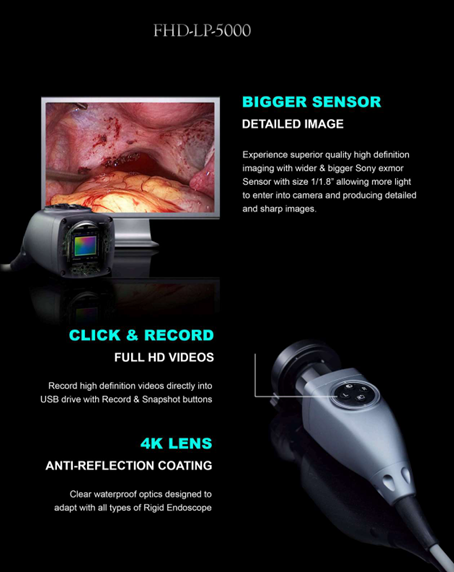

The GEN-2 Laparoscopic Camera is a high-performance 1-chip Full HD endoscopy system designed for precise visualization during laparoscopic surgeries. Built with advanced imaging technology, it delivers crystal-clear images, reliable performance, and seamless compatibility with modern surgical environments.
| Model | FHD-LP-5000 |
|---|---|
| Signal System | PAL / NTSC |
| Image Sensor | 1/1.8” Sony Exmor HDR Sensor |
| Total Pixels | 2000 (H) × 1241 (V) approx. 2.48 MP |
| Unit Cell Size | 3.75 µm (H) × 3.75 µm (V) |
| Scanning Frequency | PAL: H 15.625 KHz / V 50 Hz | NTSC: H 15.734 KHz / V 59.94 Hz |
| Frame Rate | 60 FPS @ 1080p |
| Sensor Resolution | 2.13 Megapixel 1080p |
| Effective Pixels | 1945 (H) × 1097 (V) approx. 2.13 MP |
| Focal Length of Lens | 4K 22mm / 28mm Lens |
| Gain Control (AGC) | 0 – 10 Steps |
| Brightness Control | 0 – 20 Steps |
| Output | 1 HDMI, 1 3G-SDI, 1 Video BNC Output, 1 DVI (Optional) |
| Input | 1 USB Input (Pen Drive), 1 PC Input (Windows) |
| Recording Resolution | 1080p Full HD @ 60 FPS |
| Snapshot Resolution | 1920 × 1080 Pixels |
| Digital Zoom | 1× – 10× |
| Recording Mode | Via USB Pen Drive |
| PC System Requirement | Windows 7/8/10, RAM 16GB, Intel i5/i7, Graphics 2GB |
| White Balance | Push Lock |
| Camera Cable Length | 3 Meters Ultra-Soft Silicon Cable |
| HDMI Cable Length | 3 Meters High Speed Cable |
| Supported Endoscope | Rigid / Flexible Endoscope (Optional) |
| Supported Light Source | Best with LED Light Source |
| Power Voltage | Camera Head: 12VDC | Control Unit: AC110–240V |
| Power Consumption | Max. 2W / 170mA |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 30% – 80% RH |
| Dimensions | Control Unit: 317 × 242 × 90 mm | Camera Head: Ø42 × 92 mm |
| Weight (Net) | Control Unit: ~3225g | Camera Head: ~150g |
