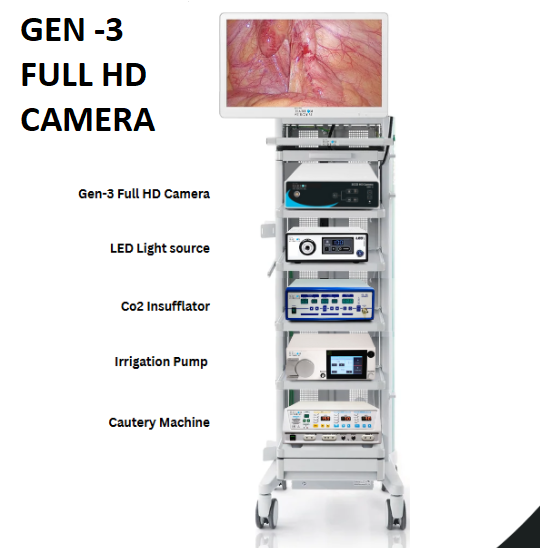

GEN-3 Hysteroscopic 3-Chip Camera – Full HD System
The GEN-3 Full HD 3-Chip Hysteroscopic Camera System delivers exceptional image clarity, superior color reproduction, and reliable performance for advanced hysteroscopic and endoscopic procedures.
Technical Data
- Model Name / Number: GEN-3
- Brand: Genotronics
- Camera Type: Hysteroscope Camera
- Usage / Application: Hospital
- Country of Origin: Made in India
Technical Specifications
| Specification | Parameter |
|---|---|
| Image Sensor | 3CCD |
| Effective Pixels | 1920(H) × 1080(V) |
| Scan Mode | Progressive Scan |
| Horizontal Resolution | 1000 TVL (1080P) |
| Focusing Range | 2 – 200 mm |
| SNR | ≥ 50 dB |
| Brightness | OSD Adjustable |
| White Balance | Auto / Manual |
| Minimum Illumination | F1.2 ≤ 0.5 Lux |
| Certification | CE, ISO 9001, ISO 13485 |
| Video Output | HDMI × 4, SDI × 1, BNC × 1, VGA × 1 |
